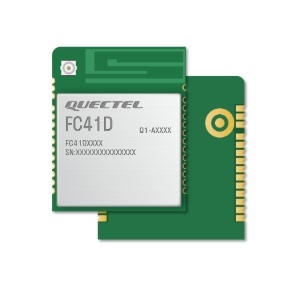

FC41D Overview
FC41D is a cutting-edge MCU Wi-Fi and Bluetooth module launched by Quectel. It boasts a high-performance processor with a frequency of up to 120 MHz and supports IEEE 802.11b/g/n protocol and Bluetooth 5.2. The module features built-in 256 KB RAM and 2/4 MB flash, ensuring efficient performance. In addition, it complies with WPAPSK, WPA2-PSK and WPA3-SAE security standards.
FC41D is in an LCC form factor with an ultra-compact package size of 20.0 mm × 18.0 mm × 2.6 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.
FC41D supports multiple interfaces including UART, SPI, I2C, ADC and PWM, and many low power consumption modes and keep-alive mechanism, which provide flexibility and versatility for a range of applications, especially in smart homes and industrial IoT scenarios.
FC41D supports the QuecOpen® solution and standard AT commands, has a compact protocol stack. FC41D supports a variety of public cloud services, and can realize efficient product development for customers.
Key features of FC41D
- Supports Bluetooth 5.2 and Bluetooth pairing
- Supports Wi-Fi (2.4 GHz), 1 × 1 SISO
- Large memory, 256 KB RAM and 2/4 MB flash
- Supports up to 19 GPIOs for UART, SPI, I2C, ADC and PWM functions in QuecOpen® solution
- 4th generation RF coaxial connector, external antenna pin, PCB antenna (optional)
- High stability, high reliability and full compatibility
Packaging: Reel (quantities of 250 - MOQ)
