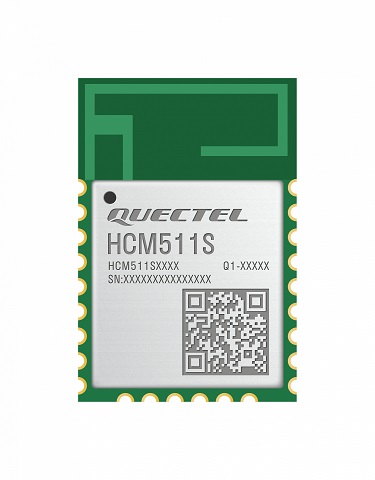

HCM511S - Quectel MCU Bluetooth Module
£1.83 - £1.94
Quectel HCM511S is a high-performance MCU Bluetooth LE 5.4 module:
- LCC form factor - 11.2mm × 16.6mm × 2.1mm
- Weight - 0.57g
- Operating temperature of -40°C to +85°C
Please note, there are options for 352KB or 512KB flash. Please choose the required variant below to see relevant pricing.
- 352KB flash - HCM511SACMD-0P
- 512KB flash - HCM511SABMD-0P
Flash size
Choose Quantity
Product Details
HCM511S Overview
The HCM511S is a high-performance MCU Bluetooth module launched by Quectel. It boasts an ARM Cortex-M33 processor with a frequency of up to 76.8MHz and supports BLE 5.4. The module features built-in 32KB RAM and 352KB/512KB flash, ensuring efficient performance.
The HCM511S comes in an LCC form factor with an ultra-compact size of 16.6mm × 11.2mm × 2.1mm, which optimises the size and cost for end-products and is compatible with diverse designs. The HCM511S supports Bluetooth mesh network low-power nodes, increasing network scalability and node counts with mesh topology, which is suitable for digital keys, asset tags and beacons, portable medical devices, low-power nodes for smart homes, battery-operated motion sensors, etc.
HCM511S Key features
- BLE 5.4
- 32KB RAM
- 352KB/512KB flash options
- Bluetooth mesh network low-power nodes (optional)
- 18 GPIOs which can be multiplexed for various interfaces including ADC, USART, I2C, I2S, PDM, SPI and PWM
- Operating temperature range: -40°C to +85°C
- PCB antenna
Packaging: Reel (Quantities of 500 - MOQ)
