Qualcomm QCC744M IoT module
£5.25
Powered by Qualcomm all-in-one 1x1 2.4 GHz Wi-Fi 6/Bluetooth/802.15.4 combo SoC QCC744, Qualcomm QCC744M LGA module is purposely designed to pack processing capabilities, Wi‑Fi/Bluetooth/802.15.4 combo connectivity, and on-module memory into a single 46-pin LGA form factor.
Find detailed information about the QCC744 SoC here >>

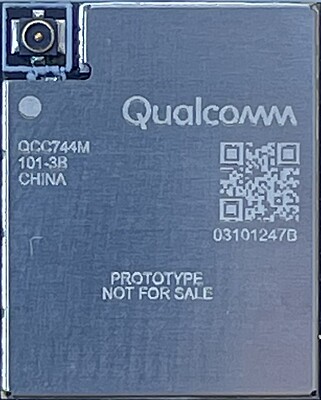

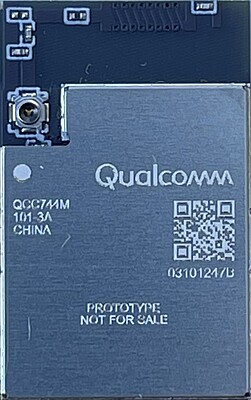

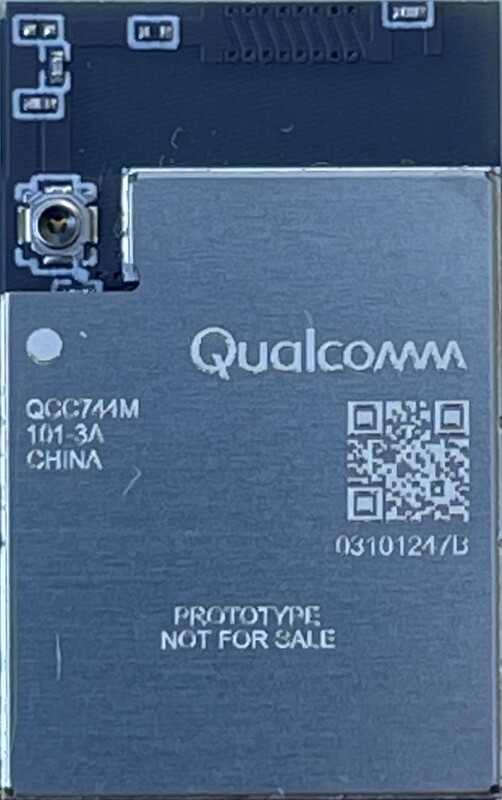

This module is available with either PCB antenna or RF connector. Please choose your required option below before purchasing.
Antenna options
Choose Quantity
Product Details
QCC744M has an integrated powerful 32‑bit RISC-V processor with FPU and DSP running up to 325 MHz, on-chip 484 KB SRAM and 128 KB ROM, optional 4/8MB pSRAM, and 8/16MB flash System-in-Package (SiP), multimedia features such as audio and video codec and interfaces, and 35x multiplexed GPIO rich peripherals. Its all-in-one design and capability contribute to reduced costs and enhanced performance, making it an attractive choice for IoT edge devices requiring single chip solution.
QCC744M operates in hostless mode, capable of running both the protocol stack all the way to application level as well as IoT applications without requiring an external MCU. Built on FreeRTOS, its software SDK is open-sourced on codeLinaro coupled with VS Code IDE market extension to facilitate rapid IoT application development. It can also be used as an IoT connectivity transceiver in hosted mode with an external host running all upper protocol stacks and applications.
QCC744M IoT Applications
- Smart Home - Door Lock & Bell, Surveillance Camera, Wireless Sensor
- Appliance – White Goods, Small Home Appliance, Kitchen Appliance
- Tracking - Indoor Tracker, Indoor LBS Asset Management
- Healthcare - Medical device, Portable patient monitor, Disposable medical device
- Industrial IoT - Industrial Sensor, Machine Monitoring, Lighting Control
