QCA4024 Dev Kit

DK-QCA4024 Qualcomm QCA4024 Development Kit

£60.00
The QCA4024 Product Development Kit is engineered to help developers and device manufacturers create unique IoT products that work in concert with a wide variety of other devices and cloud ecosystems. The kit is well suited for developing IoT applications such as smart cities, toys, home control and automation, appliances, networking and home entertainment.

Development kit contents:

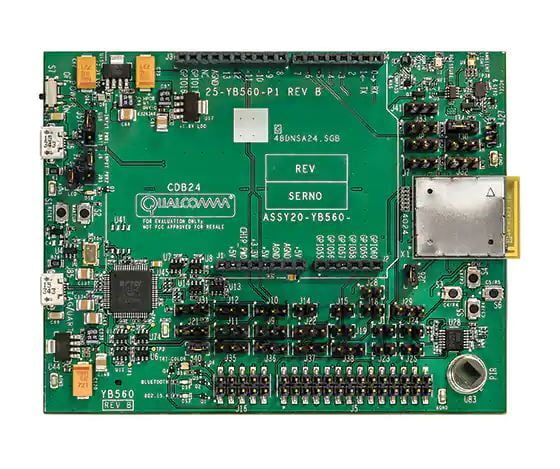

  • QCA4024 Reference Module and Development Board
  • 2x Micro USB cables to connect to Host PC and power supply
  • Set-up guide
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Choose Quantity
+ Add to Cart
Product Details
Features
  • QCA4024 dual-mode SoC with integrated Bluetooth 5 and 802.15.4 wireless technologies
  • On-board FTDI2232 IC for 4-wire JTAG debugging
  • Various commercial and free IDE options for JTAG debugging and software development
  • Arduino connector to extend kit and add shields
  • Open schematics and layout files
  • Eclipse IDE for single-step JTAG debugging
  • UART-AT commands to connect QCA4024 to MCU/CPU
  • Eight sensors and actuators on-board:
    • Ambient light luminosity
    • 3D accelerometer
    • 3D gyroscope/rotation
    • 3D magnetic field
    • Temperature
    • Humidity
    • Pressure
    • PIR sensor
  • Miscellaneous headers, test-points for power measurement, direct connect to battery, boot-configuration, and other measurements
  • Out-of-box drivers for sensors in demo applications
  • Plan for FCC/CE pre-certification
