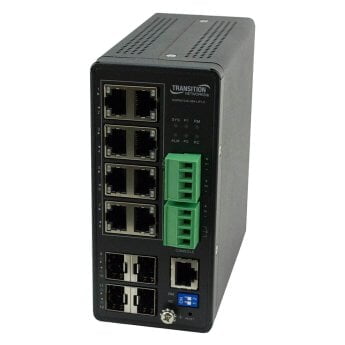

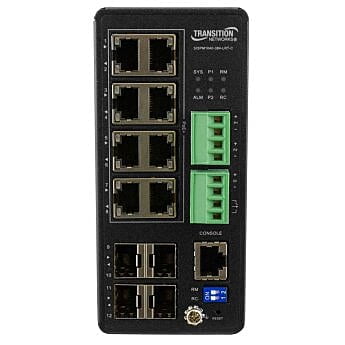

Lantronix - SISPM1040-384-LRT-C - Managed Hardened Gigabit Ethernet PoE+ Switch

Lantronix - SISPM1040-384-LRT-C - Managed Hardened Gigabit Ethernet PoE+ Switch

Lantronix - SISPM1040-384-LRT-C - Managed Hardened Gigabit Ethernet PoE+ Switch

The SISPM1040-384-LRT-C from Lantronix is a managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all (8) ports simultaneously. The switch also includes the embedded Device Management System software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network.

8x 10/100/1000Base-T PoE+ Ports (100m / 328ft)
4x 100/1000Base-X SFP Slots (Din Rail Bracket included)

Key Features

PoE+ for up to 30watts
Precision Time Protocol (PTP)
Simple to use web GUI and CLI management
Topology, floor, and map views
-40° to +75° C operating temperature
Fan-less design
Percepxion IoT Edge Solutions Platform

£1,123.81

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/lantronix-sispm1040-384-lrt-c.pdf

Expected delivery time

7-10 days for small quantities. Please contact us for larger volumes.

Available Offer

Product Details

SISPM1040-300 Series Overview

The SISPM1040-300 Series are managed PoE+ switches suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all PoE ports simultaneously.

This switch comes Integrated with the Lantronix cloud based Percepxion™ software platform, providing comprehensive device life cycle management, enterprise application integration, and data analytics, all through a single pane of glass.

The switch also includes DMS, accessible by Percepxion or the local web manager, provides advanced configuration and management of all IP addressable devices in the network, including a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.

Lantronix’s hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.

Key Features

PoE+ for up to 30watts
Precision Time Protocol (PTP)
Simple to use web GUI and CLI management
Topology, floor, and map views
-40° to +75° C operating temperature
Fan-less design
Percepxion IoT Edge Solutions Platform

Detailed Features

Store-and-Forward Architecture with 24 Gbps Switching Bandwidth
Supports Jumbo frames up to 9.6K Bytes
Ring Protections

Industry standard G.8032 Ethernet Ring Protection Switching (ERPS)
Support G.8031 Ethernet Linear Protection Switching (EPS)
Rapid Ring with recovery time less than 20ms

Supports LLDP Protocol
Temperature Detection and Alarm
Support HW Watchdog to resume operation from CPU hang up
IEEE 1588 v2 PTP
Port Mirroring
Power-over-Ethernet

Port Configuration
Auto Power Reset (APR)
DHCP per Port
Always on PoE
PoE Scheduling
Complies to IEEE 802.3at, IEEE 802.3af

IEEE 802.3ad LACP, up to 6 groups and up to 4 ports per group
Percepxion IoT Edge Solutions Platform
DMS web manager for advanced configuration and management
Up to 4K VLAN groups, Port based, IEEE 802.1Q tag, Q-in-Q, MAC based VLAN, Management VLAN, Private VLAN Edge, Voice VLAN, GVRP
ACL – up to 256 entries, Drop or Rate limiting based on: Source and Destinations MAC, VLAN ID and IP address, protocol, port, DSCP/ IP precedence, TCP/UDP source and destination ports, IEEE 802.1p priority, Ethernet type, ICMP packets and TCP flag
Loop Protection
Quality of Service

Supports 8 hardware queues
Scheduling: strict priority and WRR, Queue assignment based on DSCP and class of service
Classification: Port based, IEEE 802.1p VLAN priority based, IPV4/IPV6 precedence / DSCP based, DiffServ, Classification and re-marking ACLs
Rate limiting: Ingress policer, Engress shaping and rate control, per port
