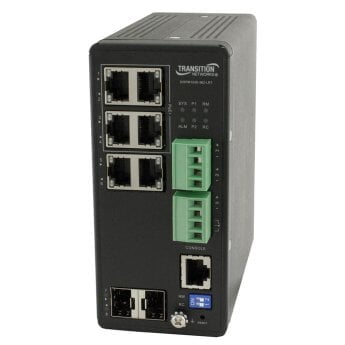

SISPM1040-300 Series Overview
The SISPM1040-300 Series are managed PoE+ switches suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all PoE ports simultaneously.
This switch comes Integrated with the Lantronix cloud based Percepxion™ software platform, providing comprehensive device life cycle management, enterprise application integration, and data analytics, all through a single pane of glass.
The switch also includes DMS, accessible by Percepxion or the local web manager, provides advanced configuration and management of all IP addressable devices in the network, including a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.
Lantronix’s hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
Key Features
- PoE+ for up to 30watts
- Precision Time Protocol (PTP)
- Simple to use web GUI and CLI management
- Topology, floor, and map views
- -40° to +75° C operating temperature
- Fan-less design
- Percepxion IoT Edge Solutions Platform
Detailed Features
- Store-and-Forward Architecture with 24 Gbps Switching Bandwidth
- Supports Jumbo frames up to 9.6K Bytes
- Ring Protections
- Industry standard G.8032 Ethernet Ring Protection Switching (ERPS)
- Support G.8031 Ethernet Linear Protection Switching (EPS)
- Rapid Ring with recovery time less than 20ms
- Supports LLDP Protocol
- Temperature Detection and Alarm
- Support HW Watchdog to resume operation from CPU hang up
- IEEE 1588 v2 PTP
- Port Mirroring
- Power-over-Ethernet
- Port Configuration
- Auto Power Reset (APR)
- DHCP per Port
- Always on PoE
- PoE Scheduling
- Complies to IEEE 802.3at, IEEE 802.3af
- IEEE 802.3ad LACP, up to 6 groups and up to 4 ports per group
- Percepxion IoT Edge Solutions Platform
- DMS web manager for advanced configuration and management
- Up to 4K VLAN groups, Port based, IEEE 802.1Q tag, Q-in-Q, MAC based VLAN, Management VLAN, Private VLAN Edge, Voice VLAN, GVRP
- ACL – up to 256 entries, Drop or Rate limiting based on: Source and Destinations MAC, VLAN ID and IP address, protocol, port, DSCP/ IP precedence, TCP/UDP source and destination ports, IEEE 802.1p priority, Ethernet type, ICMP packets and TCP flag
- Loop Protection
- Quality of Service
- Supports 8 hardware queues
- Scheduling: strict priority and WRR, Queue assignment based on DSCP and class of service
- Classification: Port based, IEEE 802.1p VLAN priority based, IPV4/IPV6 precedence / DSCP based, DiffServ, Classification and re-marking ACLs
- Rate limiting: Ingress policer, Engress shaping and rate control, per port
- IPv4/IPv6 dual stacks and static routing
- Port Security, IP Source Guard
- System Alarms via SYSLOG / SNMP Trap
- DHCP Client/Server, DHCP relay, Option 82
- Port based network access control (IEEE 802.1X)
- Web / SNMP v1,v2c,v3 / Telnet / CLI management
- Media Redundancy Protocol (MRP)
