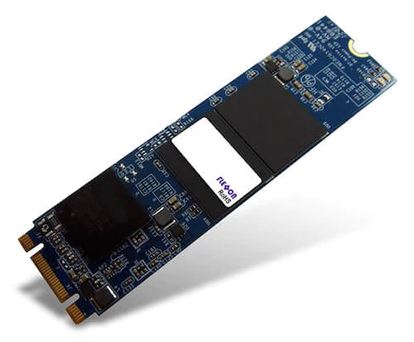

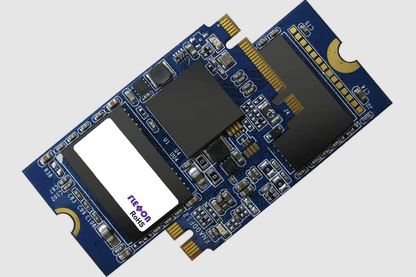

Flexxon’s INSPIRE M.2 has the SATA III interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card Format Form Factor.
It supports high performance, high endurance, good compatibility and provides comprehensive data protection. It is suitable for multi-tasking applications.
£88.41
Additional information
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Available Offer
Product Details
Product overview:
Flash: 3D TLC
Capacity: 128GB
SATA Interface:
Compliant with SATA Revision 3.1
Compatible with SATA 1.5Gbps, 3Gbps and 6Gbps interface
ECC Scheme: INSPIRE M.2 2280 applies the LDPC (Low Density Parity Check) of ECC algorithm
UART Function
GPIO
Support SMART and TRIM commands
Support DDR3/DDR3L External DRAM
Low Power Management
Power Failure Protection (Optional)
Data shaping technique for enhanced data endurance
Data Refresh technology for data integrity
Global Wear Leveling Algorithm
AES256 and TCG Opal (Optional)
Temperature Range:
Operation (Silver): 0°C ~ 70°C
Operation (Diamond): -40°C ~ 85°C
Storage: -55°C ~ 95°C
RoHS Compliant
