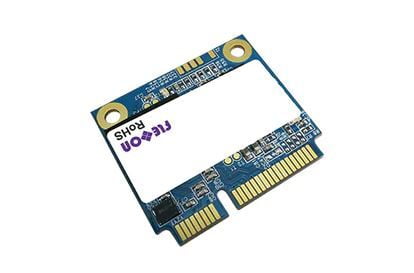

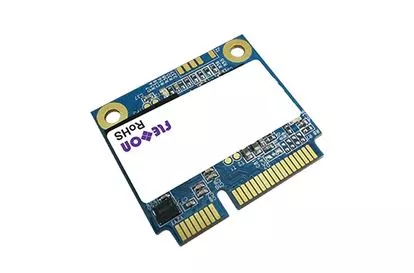

Flexxon’s XTREME mSATA mini has SATA III interface, and is fully compliant with the standard mSATA-mini form factor, known as JEDEC MO-300 standard.
It is DRAM-less design with good performance & high reliability, and suitable for embedded applications.
Additional information
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Available Offer
Product Details
Product overview:
Flash: 3D TLC
Capacity: 64GB
SATA Interface:
Compliant with SATA Revision 3.2
Compatible with SATA 1.5Gbps, 3Gbps and 6Gbps interface
ECC Scheme: XTREME mSATA mini applies the LDPC (Low Density Parity Check) of ECC algorithm
UART Function
GPIO
Support SMART and TRIM commands
Low Power Management
Power Loss Protection Algorithm
Data compression technique
Temperature Range:
Operation (Silver): 0°C ~ 70°C
Operation (Diamond): -40°C ~ 85°C
Storage: -40°C ~ 85°C
RoHS Compliant
