FSC-BT691 - DA14531 Bluetooth Slave 5.1 Serial Port Module
£9.89
FSC-BT691 is an ultra-low-power Bluetooth module that uses the Dialog BLE 5.1 chip DA14531, supports UART/I2C/SPI interfaces.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/fsc-bt691-datasheet-v1.5-en.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume order requirements Choose Quantity
Product Details
FSC-BT691 is an ultra-low-power Bluetooth module that uses the Dialog BLE 5.1 chip DA14531, supports UART/I2C/SPI interfaces.

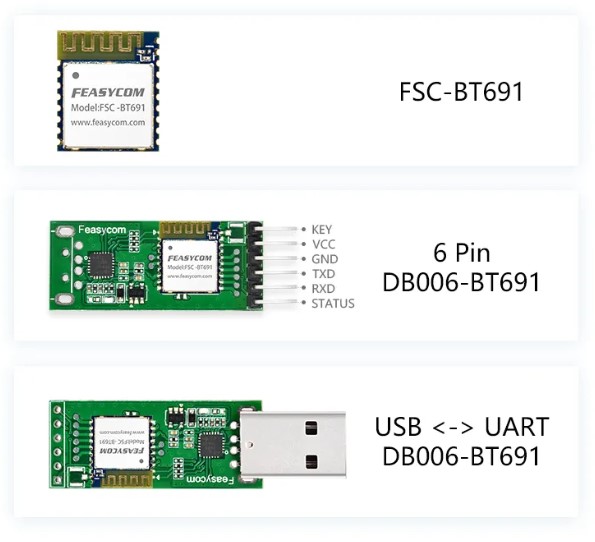

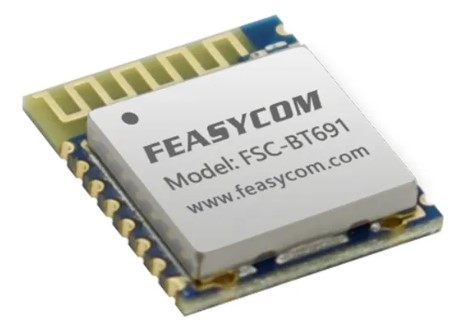

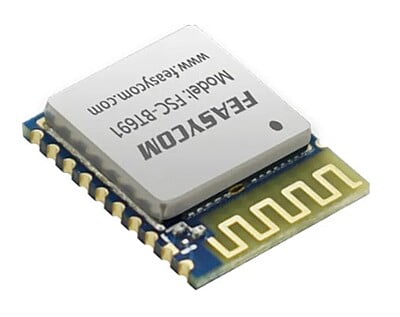

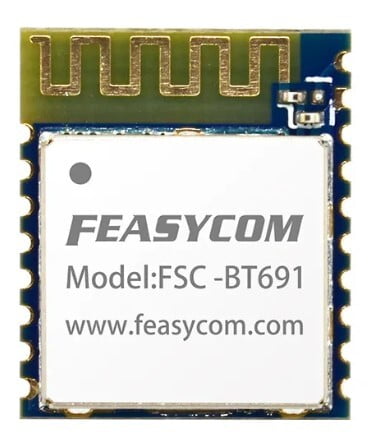

FSC-BT691 is an ultra small size Bluetooth 5.1 module with onboard antenna. The dismension is only 10mm *11.9mm *2mm,which provides users with ultra-high flexibility and multiple possibilities.
Support communicating with the FeasyBlue app and many other Bluetooth apps.
Key features
- Qualified Bluetooth v5.1 specifications
- Postage stamp sized: 10mm x 11.9mm x 2mm
- Low power
- The default UART Baud rate is 115.2Kbps
- GAP, ATT, GATT, SMP, L2CAP profiles
- Bluetooth stack profiles: all BLE protocols
- Support SPI, UART, I2C interface
- Support the OTA upgrade
- Integrated temperature sensor
- Operating Temperature: -40°C to +85°C
- Available certifications: FCC、CE、IC、KC、TELEC、SRRC
