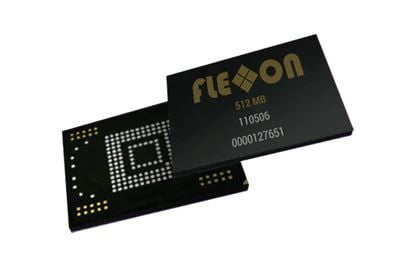

Flexxon’s XTRA III eMMC is fully compliant with JEDEC eMMC 4.5 Standard. It is a combination of an embedded flash controller and standard MLC NAND flash memory in one JEDEC standard package, 100ball (14.0mm x18.0mm). Flexxon eMMC provides high performance, good reliability and advanced power management. It is suitable for small, low power electronic devices.
£20.98
Additional information
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Available Offer
Product Details
Flexxon XTRA III eMMC 4.5 includes the following features:
Compliant with eMMC Specification Ver. 4.4, 4.41, 4.5
Package of eMMC: 14.0mm x 18.0mm x 1.4mm
Temperature Range:
Operation (Gold Grade) :-25°C ~ 85°C
Operation (Diamond Grade) :-40°C ~ 85°C
Storage :-55°C ~ 125°C
Operating Voltage:
VCC: 3.3V
VCCQ: 1.8V/3.3V
Up to 52MHz clock speed
Support HS200 mode
Supports three data bus widths: 1 bit (default), 4 bits, 8 bits
RoHS compliant
