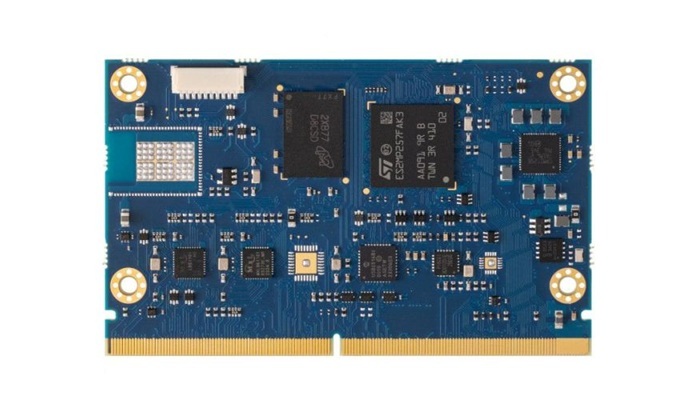

Engicam - SmarCore STM32MP2 System on Module

Name: Engicam - SmarCore STM32MP2 System on Module-0026K1043QI550
Brand: Engicam
SKU: 0026K1043QI550
Price: 550.0 GBP
Availability: InStock

SmarCore STM32MP2 is based on the next-gen STM32 MPUs by ST® Microprocessors, with industrial-grade 64-bit MPU for secure Industry 4.0 and advanced edge computing applications that require high-end multimedia capabilities.

This new SOM includes single or dual Arm® Cortex®-A35 up to 1.5 GHz, Arm Cortex-M33 at 400 GHz, NPU at 1.35 TOPS, 3D GPU for time-sensitive networking. Robustness, extended connectivity, high-end graphics and strong security.

Please refer to the table in the Product Details section below to see the specifications of each part number, then select your required option below to see the relevant price.

£82.83 - £550.00

£89.50

£100.20

£82.83

£93.52

£550.00

Additional information

Available Offer

Product Details

SmarCore STM32MP2 Variants

Part number	Description
002670043QI55A	SmarCore STM32MP257 2GB NO-WIFI (SMARC 2.1 STM32MP257DAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GBB LPDD4, 8GB eMMC -25°C, CAN, NO TPM, HUB USB, DUAL Ethernet, Industrial, Standard security)
00267W043QI55A	SmarCore STM32MP257 2GB WIFI (SMARC 2.1 STM32MP257DAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GBB LPDD4, 8GB eMMC -25°C, CAN, NO TPM, HUB USB, DUAL Ethernet, Industrial, Standard security, WiFi)
00267B043QI55A	SmarCore STM32MP257 2GB BASIC (SMARC 2.1 STM32MP257DAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GBB LPDD4, 8GB eMMC -25°C, CAN, NO TPM, NO HUB USB, SINGLE Ethernet, NO-WIFI, Industrial, Standard security)
00267S043QI55A	SmarCore STM32MP257 2GB SECURE NO-WIFI (SMARC 2.1 STM32MP257FAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GBB LPDD4, 8GB eMMC -25°C, CAN, NO TPM, HUB USB, DUAL Ethernet, Industrial, Enhanced security)
0026K1043QI550	SmarCore STM32MP257 STARTERKIT NO-WIFI 10.1” display module included: SMARCORE STM32MP2, 2GB LPDDR, 8GB eMMC -25°C, no-wifi, Industrial, Standard security) Carrier: X.TOUCH 2.0 Ampire 10.1” display included
