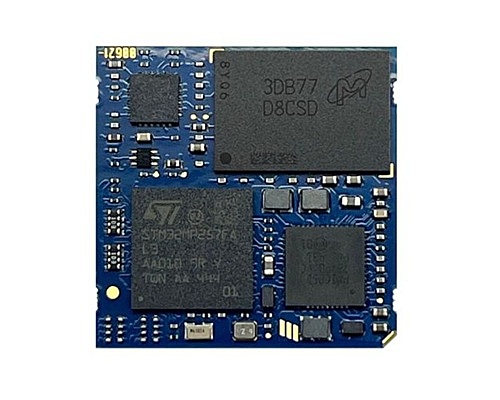

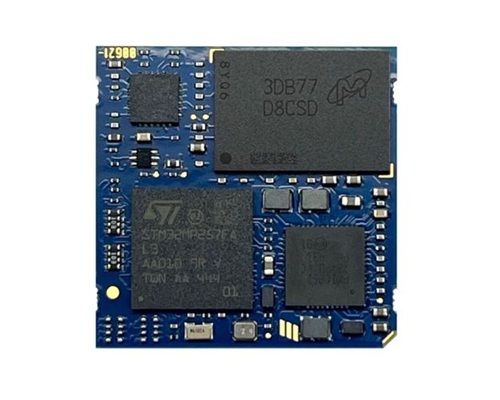

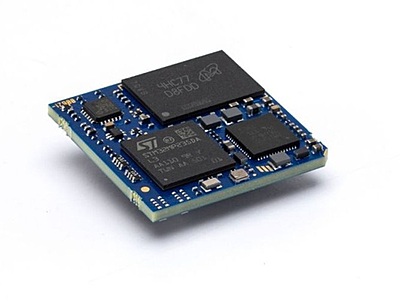

Engicam - MicroGEA STM32MP2 System on Module
£49.93 - £440.00
MicroGEA STM32MP2 is based on the Next-gen STM32 MPUs by ST® Microprocessors, with industrial-grade 64-bit MPU for secure Industry 4.0 and advanced edge computing applications that require high-end multimedia capabilities.
This new MicroSOM includes single or dual Arm® Cortex®-A35 up to 1.5 GHz and Arm® Cortex® -M33 at 400 GHz, NPU at 1.35 TOPS and 3D GPU for advanced HMI applications. Robustness, extended connectivity, high-end graphics and strong security in a compact format.
Please refer to the table in the Product Details section below to see the specifications of each part number, then select your required option below to see the relevant price.
Part number
Choose Quantity
Product Details
MicroGEA STM32MP2 Variants
| Part number | Description |
| 002670052DI550 | MicroGEA STM32MP257 2GB LVDS (MicroGEA 5V STM32MP257DAL3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
| 0026700523I550 | MicroGEA STM32MP235 2GB LVDS (MicroGEA 5V STM32MP235DAL3, 1xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
| 0026700523I540 | MicroGEA STM32MP235 1GB LVDS (MicroGEA 5V STM32MP235DAL3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 1GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
| 0026700524I540 | MicroGEA STM32MP251 1GB (MicroGEA 5V STM32MP251FAL3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 1GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
| 0026K0052DI550 | MicroGEA STM32MP257 5" Starterkit (Micro 5” open frame based on MicroGEA 5V STM32MP257, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
| 0026S0052DI550 | MicroGEA STM32MP257 7" Full evaluation board (EDIMM starterkit + MicroGEA adapter, MicroGEA 5V STM32MP257, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, single channel LVDS, 1 x fast ethernet, 5V input, Industrial) |
MicroGEA STM32MP2 Highlights
- Neural Processing Unit (NPU)
- 1 x Ethernet 10/100
- 3D GPU, H.264 hardware video Codec
- RGB parallel and MIPI DSI or LVDS displays
MicroGEA STM32MP2 Applications
- Industrial
- Transportation
- Robotics
- Biomedical/Medical devices
For detailed specifications, please refer to the MicroGEA STM32MP2 product flyer.
