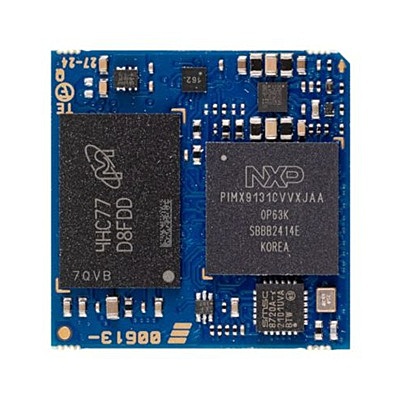

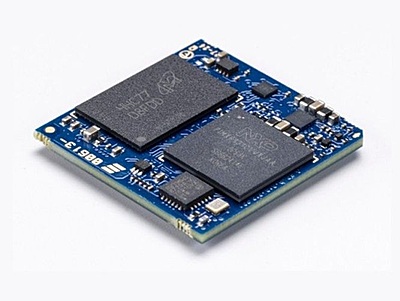

Engicam - MicroGEA MX91 System on Module
£42.75 - £440.00
MicroGEA MX91 is based on the latest NXP® i.MX 91 processor. It delivers ultra-low power processing and advanced integrated security in an extremely compact form.
This module is equipped with an Arm® Cortex®-A55 @ up to 1.4 GHz processor, which includes industrial features and temperature grade, a wide set of peripherals, scalable on board eMMC and DRAM, connectivity, and security options.
Please refer to the table in the Product Details section below to see the specifications of each part number, then select your required option below to see the relevant price.
Part number
Choose Quantity
Product Details
MicroGEA MX91 variants
| Part number | Description |
| 002670050SI44A | MicroGEA MX91 800MHz 1GB (MicroGEA MIMX9121CVVXCAB, 1xCortexA55@800MHz, 1GB LPDDR4, 4GB eMMC -25°C, RGB, Industrial) |
| 002670050FI55A | MicroGEA MX91 1.4GHz 2GB (MicroGEA MIMX9131CVVXJAB, 1xCortexA55@1.4GHz, 2GB LPDDR4, 8GB eMMC -40°C, RGB, Industrial) |
| 0026K0050FI550 | StarterKit MicroGEA MX91 Micro 5” (Micro 5” open frame + MicroGEA MIMX9131CVVXJAA, 1xCortexA55@1.4GHz, 2GB LPDDR4, 8GB eMMC -40°C, RGB, Industrial) |
| 0026S0050FI550 | MicroGEA MX91 7" Full evaluation board (EDIMM starterkit + MicroGEA adapter, MicroGEA MIMX9131CVVXJAA, 1xCortexA55@1.4GHz, 2GB LPDDR4, 8GB eMMC -40°C, RGB, Industrial) |
MicroGEA MX91 Highlights
- Extreme compact form factor
- Easy-to-use single power supply
- Ethernet PHY on board
- Suitable for optimized industrial applications
MicroGEA MX91 Applications
- Industrial
- Transportation
- Robotics
- Biomedical/Medical devices
For detailed specifications, please refer to the product flyer.
