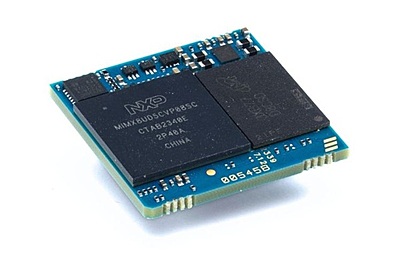

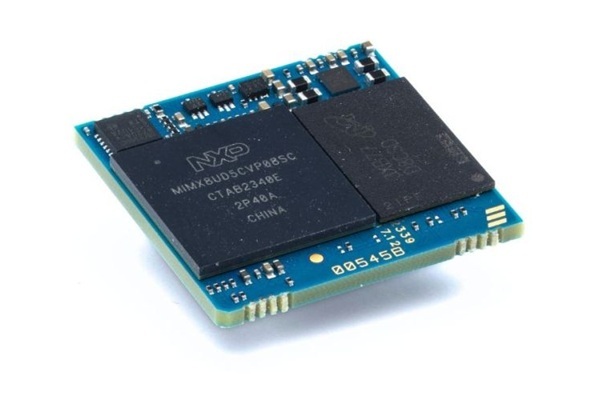

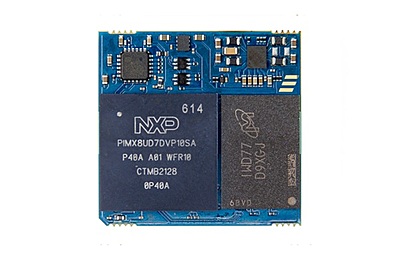

Engicam - MicroGEA MX8ULP System on Module

Name: Engicam - MicroGEA MX8ULP System on Module-0026K1036DI550
Brand: Engicam
SKU: 0026K1036DI550
Price: 310.2 GBP
Availability: InStock

Engicam introduces the MicroGEA MX8ULP, featuring the latest NXP® i.MX 8ULP processor.

This module boasts a robust dual-core Cortex-A35 paired with Cortex-M33, offering a high-performance solution suitable for HMI and real-time applications. Despite its compact size (25x26 mm), the module excels in ultra-low power processing, advanced integrated security, and a graphical engine.

Please refer to the table in the Product Details section below to see the specifications of each part number, then select your required option below to see the relevant price.

£52.10 - £310.20

£52.10

£57.45

£294.80

£310.20

Part number

002670036DI440 002670036DI550 0026K0036DI550 0026K1036DI550

Additional information

Available Offer

Product Details

MicroGEA MX8ULP variants

Part number	Description
002670036DI440	MicroGEA MX8ULP 1GB (MicroGEA MIMX8UD5CVP08SC, 2xCortexA35@1GHz, CortexM33@216MHz, 1GB LPDDR4, 4GB eMMC, -25°C memories, RGB and MIPI-DSI LCD, Industrial)
002670036DI550	MicroGEA MX8ULP 2GB (MicroGEA MIMX8UD5CVP08SC, 2xCortexA35@1GHz, CortexM33@216MHz, 2GB LPDDR4, 8GB eMMC -25°C, RGB and MIPI-DSI LCD, Industrial)
0026K0036DI550	StarterKit MX8ULP 7" MicroDev BASIC +LCD+RS485 (MicroGEA MIMX8UD5CVP08SC, 2xCortexA35@1GHz, CortexM33@216MHz, 2GB LPDDR4, 8GB eMMC -25°C, RGB and MIPI-DSI LCD, Industrial)
0026K1036DI550	StarterKit MX8ULP 7" MicroDev BASIC +LCD+RS485+WiFi (MicroGEA MIMX8UD5CVP08SC, 2xCortexA35@1GHz, CortexM33@216MHz, 2GB LPDDR4, 8GB eMMC -25°C, RGB and MIPI-DSI LCD, Industrial)
