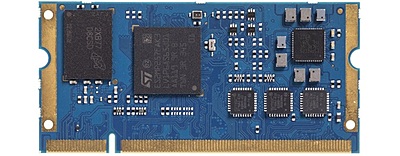

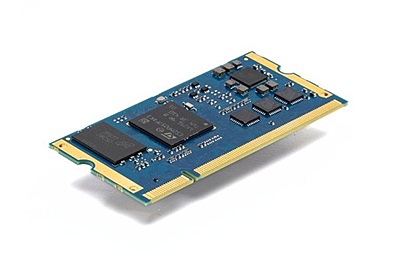

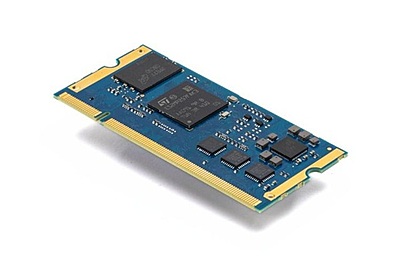

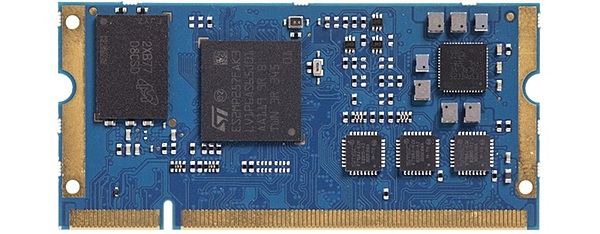

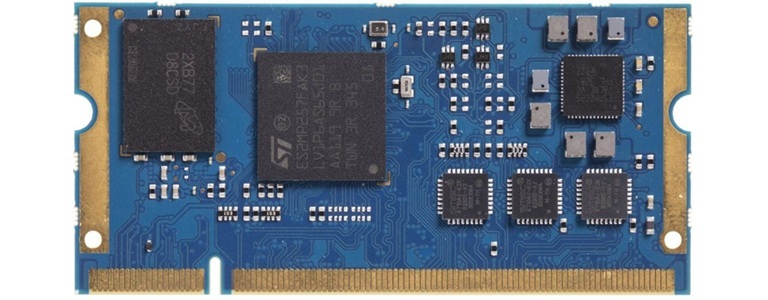

Engicam - i.Core STM32MP2 System on Module
£57.46 - £429.00
Based on the Next-gen ST® STM32 MPUs, this SOM features industrial-grade 64-bit MPU for secure Industry 4.0 and advanced edge computing applications that require high-end multimedia capabilities.
This new SOM includes single or dual Arm® Cortex®-A35 up to 1.5 GHz and Arm® Cortex® -M33 at 400 GHz, NPU at 1.35 TOPS and 3D GPU for advanced HMI applications. Robustness, extended connectivity, high-end graphics and strong security.
Please refer to the table in the Product Details section below to see the specifications of each part number, then select your required option below to see the relevant price.
Part number
Choose Quantity
Product Details
i.Core STM32MP2 Variants
| Part number | Description |
| 002670042DI550 | i.Core STM32MP257 2GB LVDS (EDIMM 2.0 STM32MP257DAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, LVDS, 3 x fast ethernet, Industrial) |
| 00267S042DI550 | i.Core STM32MP257 2GB/8GB LVDS (EDIMM 2.0 STM32MP257FAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, LVDS, 3 x fast ethernet, Industrial) |
| 0026700423I540 | i.Core STM32MP235 1GB LVDS (EDIMM 2.0 STM32MP235DAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 1GB LPDDR4, 8GB eMMC -25°C, LVDS, 2 x fast ethernet, Industrial) |
| 00267S042DI650 | i.Core STM32MP257 2GB/16GB (EDIMM 2.0 STM32MP257FAK3, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 16GB eMMC -25°C, LVDS, 3 x fast ethernet, Industrial) |
| 0026K0042DI550 | i.Core STM32MP257 7” LCD STARTERKIT 2GB (EDIMM 2.0 STM32MP257, 2xCortexA35@1.5GHz, CortexM3@400MHz, 2GB LPDDR4, 8GB eMMC -25°C, LVDS, 3 x fast ethernet, Industrial) |
| 0026K00423I540 | i.Core STM32MP235 7” LCD STARTERKIT 1GB (EDIMM 2.0 STM32MP235, 2xCortexA35@1.5GHz, CortexM3@400MHz, 1GB LPDDR4, 8GB eMMC -25°C, LVDS, 2 x fast ethernet, Industrial) |
i.Core STM32MP2 Highlights
- Neural Processing Unit (NPU)
- 3 x Ethernet 10/100
- 1080p graphics capabilities (3D GPU, H.264 hardware video Codec)
- MIPI DSI and LVDS displays
i.Core STM32MP2 Applications
- Industrial
- Transportation
- Robotics
- Biomedical/Medical devices
For detailed specifications, please refer to the i.Core STM32MP2 product flyer.
