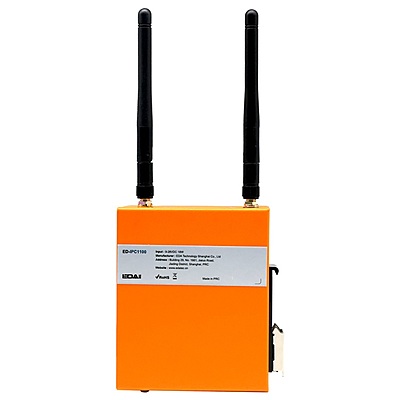

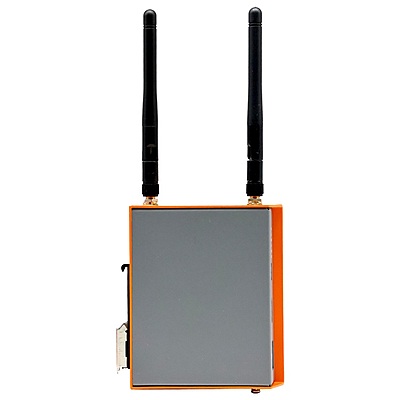

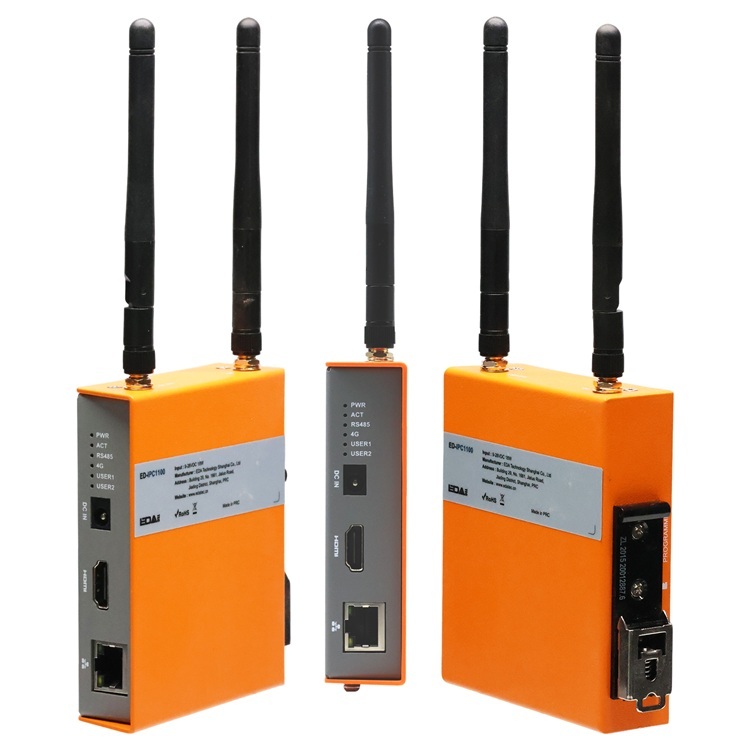

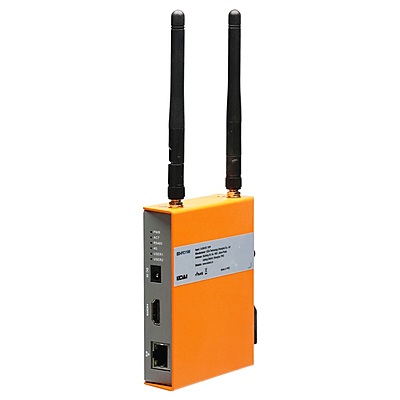

ED-IPC1100 Series
The ED-IPC1100 Series are industrial connectivity computers with RS485 and 4G, based on Raspberry Pi Cm0.
Their main applications are:
- IoT gateway
- Data acquisition gateway
- Industrial automation
- PLC
Specifications
System |
CPU | 1GHz quad-core 64-bit Arm Cortex-A53 processor |
VPU | H.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps |
GPU | OpenGL ES 1.1/2.0 graphics processing |
Memory | 512MB SDRAM |
Storage | 8GB or 16GB eMMC storage available |
Software |
Operating System | Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit |

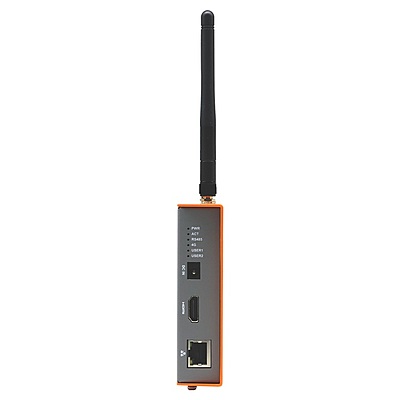

Front I/O |
Power | 1 x DC input, DC jack connector, supports 9V~28V input. |
HDMI | 1 x HDMI port, Type-A connector, compliant with HDMI 1.3a standard, supports 1080p resolution at 30Hz. |
100M Ethernet | 1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network. |
Rear I/O |
Nano SIM Card Slot | 1 x Nano SIM card slot for installing a Nano SIM card to obtain 4G signal. |
Micro SD Card Slot | 1 x Micro SD card slot, supports installation of a Micro SD card for system boot.
Note: The Micro SD card slot is only compatible with the CM0Lite. |
Type-C USB Interface | 1 x Type-C USB interface, supports eMMC flashing via this interface. |

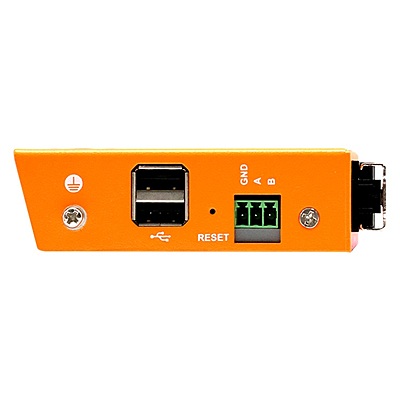

Side I/O |
USB 2.0 | 2 x USB 2.0 ports, stacked Type-A connector, each supporting a maximum data transfer rate of 480Mbps. |
RS485 | 1 x RS485 interface, 3-pin 3.5mm pitch phoenix terminal, signal definitions: GND/A/B. |

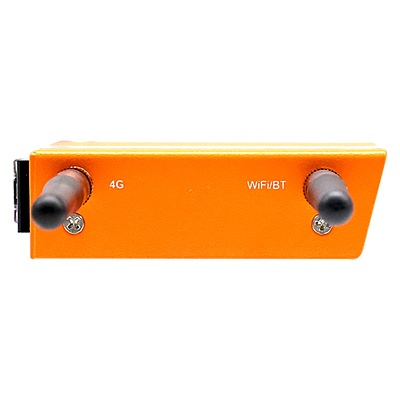

Antenna Interface | 2 x Antenna interfaces, SMA connector, for Wi-Fi/BT and 4G antenna |
Buttons and Indicators |
PWR | 1 x red power indicator, used to display the device's power on/off status. |
ACT | 1 x green system status indicator, used to monitor the device's operating status. |
4G | 1 x 4G signal indicator, green, for checking the status of the 4G signal. |
USER1 and USER2 | 2 x User indicators, green, allowing users to customize the status based on actual needs. |
RS485 | 1 x RS485 indicator, green, for viewing the communication status of the serial port. |
Reset | 1 x reset button, recessed design, pressing the button restarts the device. |
Expansion Functions |
RTC | Built-in RTC function with a 1F supercapacitor as the RTC backup power supply. |
Electrical Characteristics |
Input Voltage | 9V~28V DC |
Power Consumption | About 5W |
Mechanical Characteristics |
Dimensions | 104mm x 86.4mm x 26mm (W x D x H, DIN-rail bracket and antenna are not included) |
Weight | About 270g |

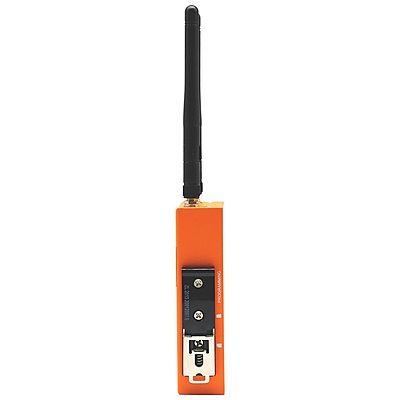

Installation | DIN rail mounting |
Wireless |
Wi-Fi/Bluetooth | Supports 2.4GHz Wi-Fi and Bluetooth, with an external antenna. - 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
- Bluetooth 5.0: Compatible frequency band 2402MHz ~ 2480MHz
|
4G | Onboard 4G module with antenna. - EC800M-CN Module (China)
- LTE FDD: B1/B3/B5/B8
- LTE TDD: B34/B38/B39/B40/B41
- EC800K-EU Module (Europe)
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28
- EC800Q-NA Module (America)
- LTE-FDD: B2/B4/B5/B12/B13/B66
|
Environmental & Regulatory |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -20°C ~ 60°C |
Ambient humidity | 5% ~ 95% (non-condensing) |
