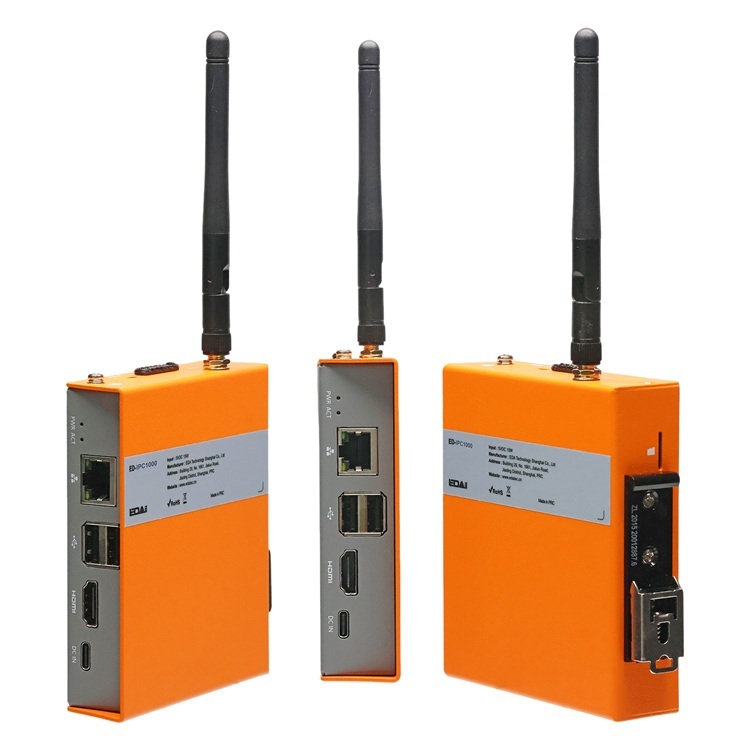

EDATEC IPC1000-10008 Industrial Computer

EDATEC IPC1000-10008 Industrial Computer

Low-cost Industrial Computer based on Raspberry Pi CM0

Powered by Raspberry Pi CM0, balance of cost, performance and power consumption
Rich I/O with 1x Ethernet, 1x HDMI, 2x USB 2.0
Industrial enhanced with RTC and Watchdog integrated
Ready-to-use Raspberry Pi OS, sharing the same Raspberry Pi ecosystem
Excellent passive cooling performance for full-speed operation without compromise at 60°C
All-metal case, supports DIN rail mounting

The ED-IPC1000-10008 model variant has Wi-Fi/BT and 8GB eMMC. If you require different storage (0GB or 16GB) or without Wi-Fi/BT, please contact us for a quote.

£60.00

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/ed-ipc1000-datasheet-en.pdf

Expected delivery time

Manufacturer lead time - 4-6 weeks

Available Offer

Product Details

IPC1000 Series

The IPC1000 Series are a range of industrial computers based on Raspberry Pi CM0.

Specifications

System
CPU	1GHz quad-core 64-bit Arm Cortex-A53 processor
VPU	H.264/MPEG-4 video decoding, 1080p@30fps H.264 encoding, 1080p@30fps
GPU	OpenGL ES 1.1/2.0 graphics processing
Memory	512MB SDRAM
Storage	8GB or 16GB eMMC storage available Optional 32GB Micro SD card (used for system boot when using the CM0Lite module).

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit Raspberry Pi OS (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit

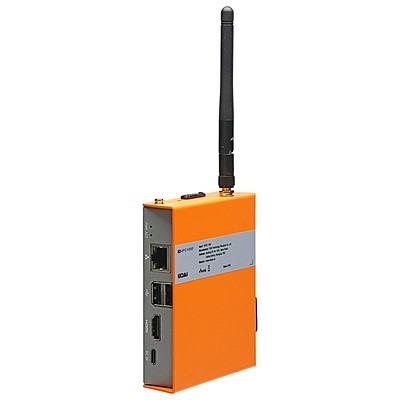

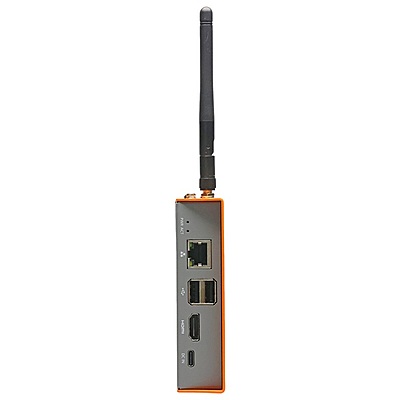

Front I/O
Power	1 x DC input, USB Type-C connector, supports 5V input.
HDMI	1 x HDMI port, Type-A connector, compliant with HDMI 1.3a standard, supports 1080p resolution at 30Hz.
USB 2.0	2 x USB 2.0 ports, stacked Type-A connector, each supporting a maximum data transfer rate of 480Mbps.
100M Ethernet	1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.

Rear I/O
Micro SD Card Slot	1 x Micro SD card slot, supports installation of a Micro SD card for system boot. Note: The Micro SD card slot is only compatible with the CM0Lite.

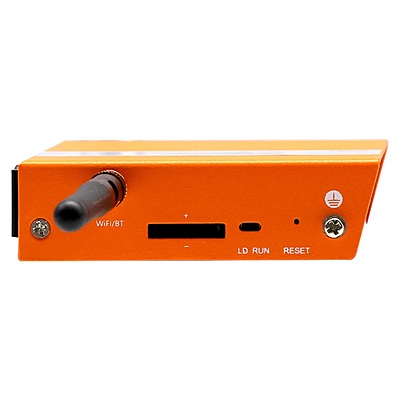

Side I/O
Antenna Interface	1 x Antenna interface, SMA connector, for Wi-Fi/BT antenna
RTC Battery Interface	1 x RTC battery interface, supports installation of CR2032 battery via this interface.
DIP Switch	1 x DIP switch, supports switching between normal operation mode and flashing mode. LD: Flashing mode RUN: Normal operation mode (default state)

Buttons and Indicators
PWR	1 x red power indicator, used to display the device's power on/off status.
ACT	1 x green system status indicator, used to monitor the device's operating status.
Reset	1 x reset button, recessed design, pressing the button restarts the device.

Expansion Functions
RTC	Integrated RTC function with an RTC battery interface, supporting the installation of a CR2032 battery as RTC backup power.
Watch Dog	Built-in Watch Dog function, enhancing system reliability.

Electrical Characteristics
Input Voltage	5V DC
Power Consumption	About 3.5W

Mechanical Characteristics
Dimensions	107.5mm x 94.5mm x 26mm (W x D x H, DIN-rail bracket and antenna are not included)
Weight	About 320g

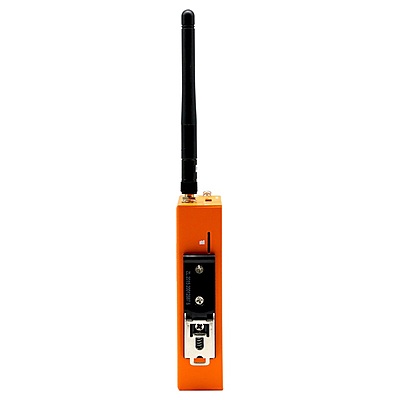

Installation	DIN rail mounting
