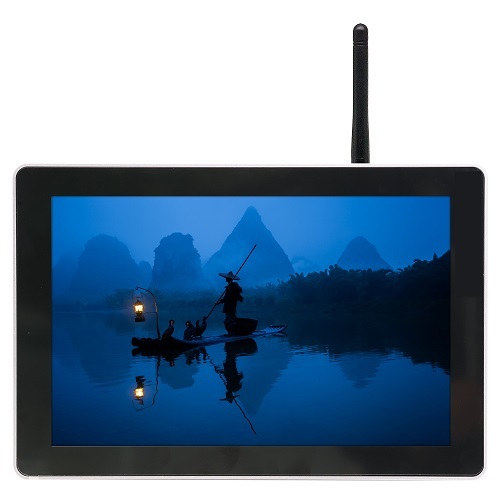

10.1-inch Industrial HMI display based on Raspberry Pi CM5
ED-HMI3120-101C-10216 is part of the EDATEC HMI3120 series, and has the following specific features:
- 10.1inch LCD size
- Touch screen
- WiFi & BT
- 2GB DDR
- 16GB eMMC
For general features, please refer to the Product Details section below. For other HMI3120 variants, see our EDATEC page.
£243.75
Additional information
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/ed-hmi3120-101c-datasheet-en.pdf Expected delivery time
Manufacturer lead time - 4-6 weeks Available Offer
Product Details
General features of the EDATEC HMI3120 Series
- 7.0" TFT, resolution 1024x600,10.1" TFT, resolution 1280x800, multi-point capacitive touch screen
- Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2GHz
- Up to 16GB LPDDR4 RAM and 32GB eMMC storage
- Support Micro SD card and M.2 NVMe SSD storage expansion

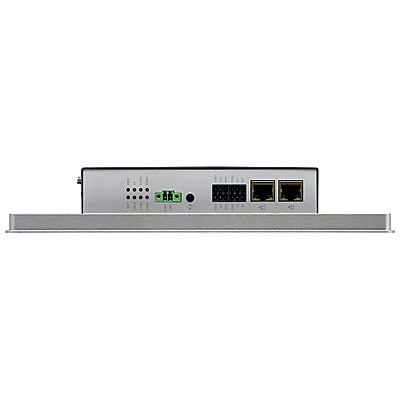

- Dual Lans, 1 x Gigabit Ethernet and 1 x 100M Ethernet
- 4 x isolated RS232/485 with electrostatic and surge protection
- 2.4GHz & 5GHz dual-band Wi-Fi, Bluetooth and 4G LTE
- Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection and overcurrent protection
- Integrated supercapacitor (backup power supply, optional), RTC, Watch Dog, EEPROM and crypto authentication
- Embedded installation, compatible with VESA standard bracket installation
HMI3120 Specifications
