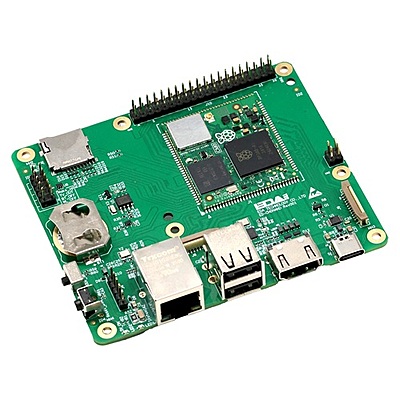

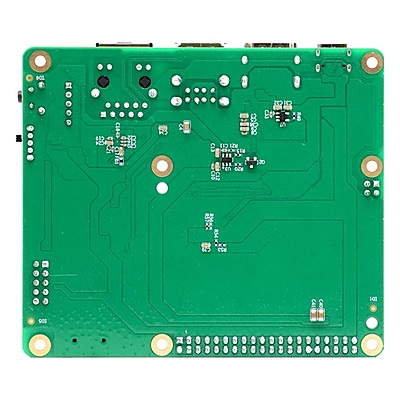

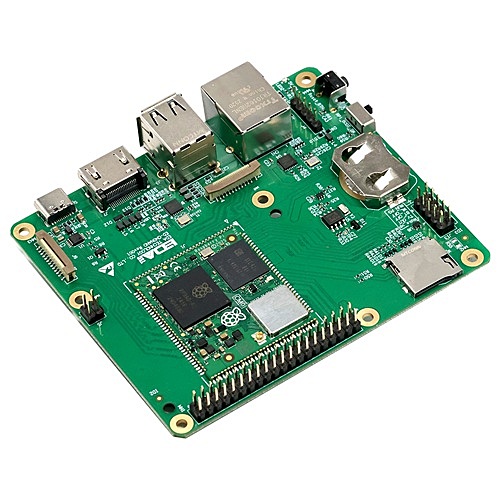

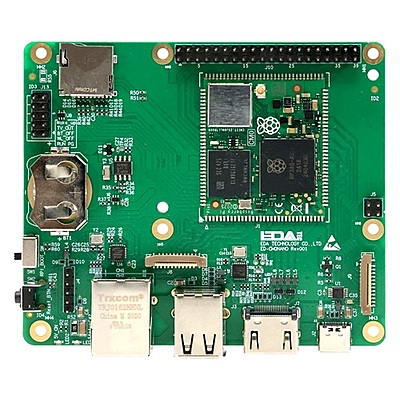

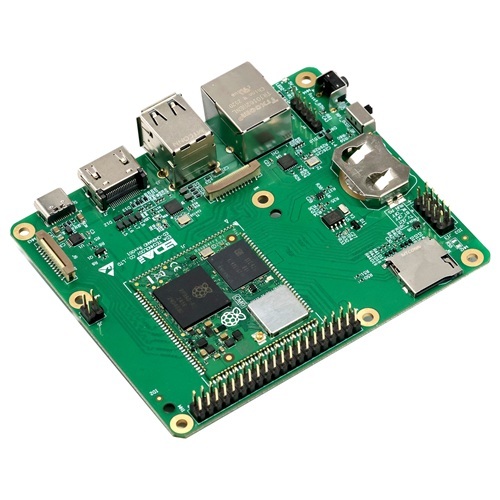

EDATEC CM0NANO - Single board computer based on Raspberry Pi CM0

CPU

1GHz quad-core 64-bit Arm Cortex-A53 processor

VPU

H.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps

GPU

OpenGL ES 1.1/2.0 graphics processing

Memory

512MB SDRAM

Storage

8GB or 16GB eMMC storage available
Micro SD card slot (When the CM0Lite is used, a Micro SD card can be inserted for system boot)

Operating System

Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit

RTC Battery Base

1 x RTC Battery Base, allows for the installation of an RTC battery (CR2032) through this interface.

DIP Switch

1 x DIP switch, supports switching between normal operation mode and flashing mode.

• LD (switch positioned toward the RTC battery base): Flashing mode
• RUN (switch positioned toward the reset button): Normal operation mode (default state)

Power

1 x DC input, USB Type-C connector, supports 5V input.

HDMI

1 x HDMI port, Type-A connector, compliant with HDMI 1.3a standard, supports 1080p resolution at 30Hz.

USB 2.0

2 x USB 2.0 ports, stacked Type-A connector, each supporting a maximum data transfer rate of 480Mbps.

100M Ethernet

1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.

Micro SD Card Slot

1 x Micro SD card slot, supports installation of a Micro SD card for system boot.
Note: The Micro SD card slot is only compatible with the CM0Lite.

PWR

1 x red power indicator, used to display the device's power on/off status.

ACT

1 x green system status indicator, used to monitor the device's operating status.

RESET

1 x reset button, recessed design, pressing the button restarts the device.

PoE HAT Header

1 x PoE HAT Header, 2x2-pin 2.54mm pitch header, supports expansion connection for Raspberry Pi PoE HAT module.

IPEX-1 Interface

1 x IPEX-1 interface, supports connection to an external antenna.

Raspberry Pi 40-Pin GPIO Header

1 x Raspberry Pi 40-Pin GPIO Header, 2x20-pin 2.54mm pitch header. Pin definitions include GPIO2-GPIO27, 2x 3V3, 2x 5V, 1x ID_SD and 1x ID_SC, supports connection with Raspberry Pi standard accessories.

4-lane CSI Interface

1 x 4-lane CSI Interface, 22-pin FPC connector, compatible with Raspberry Pi Camera modules.

4-lane DSI Interface

1 x 4-lane DSI Interface, 22-pin FPC connector, compatible with Raspberry Pi Touch Display.

USB 2.0 Interface

1 x USB 2.0 interface, 1x5-pin 2.54mm pitch header. Pin definitions: VBUS/USB_DM/USB_DP/GND/NC, supports expansion of USB 2.0 interface.

10-Pin Header

1 x 10-Pin Header, 2x5-pin 2.54mm pitch header. Pin definitions: 4xGND/RUN_PG/WL_ON/BT_ON/TV_OUT/RUN_PG_BUF/GLOBAL_EN, reserved for future functions.

• Short GND (Pin 1) and RUN_PG (Pin 2): Shuts down the ED-CM0NANO
• Short GND (Pin 3) and WL_ON (Pin 4): Disables Wi-Fi functionality
• Short GND (Pin 5) and BT_ON (Pin 6): Disables Bluetooth functionality
• Connect a button between RUN_PG_BUF (Pin 9) and GLOBAL_EN (Pin 10): Can be used to wake the ED-CM0NANO from sleep mode

RTC

Integrated RTC function with an RTC battery base, supporting the installation of a CR2032 battery as RTC backup power.

Watch Dog

Built-in Watch Dog function, enhancing system reliability.​

Input Voltage

5V DC
Note: A 5V 3A adapter is recommended.

Power Consumption

10W (Max)

Dimensions

100mm x 85mm (WxD)

Weight

About 52g

Wi-Fi/Bluetooth (optional)

Supports 2.4GHz Wi-Fi and Bluetooth, with an external FPC antenna.

• 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
• Bluetooth 5.0: Compatible frequency band 2402MHz ~ 2480MHz

Operating Temperature

-20°C ~ 60°C

Storage Temperature

-20°C ~ 60°C

Ambient humidity

5% ~ 95% (non-condensing)
