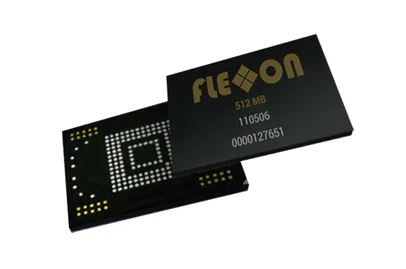

Flexxon’s AXO Series eMMC 5.1 8GB MLC Diamond Grade, is fully compliant with JEDEC eMMC 5.1 Standard. It is a combination of an embedded flash controller and standard NAND flash memory in one JEDEC standard package, 153ball (11.5mm x 13mm). FLEXXON eMMC provides high performance, good reliability and advanced power management. It is suitable for small, low power electronic devices.
£13.70
Additional information
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Available Offer
Product Details
Flexxon's AXO Series eMMC 5.1 includes the following features:
Compliant with eMMC Specification Ver. 5.1
Backward compatible to eMMC Specification version 4.41/ 4.5 / 5.0
Flash Type - MLC: 8GB
Package of eMMC - 11.5 mm x 13 mm x 1.0mm
Temperature Range - Operation:-40°C ~ 85°C, Storage:-40°C ~ 85°C
Operating Voltage - VCC: 3.3V, VCCQ:1.8V/3.3V
Bus Mode - High-speed eMMC protocol, Clock frequency: 0 ~200MHz
Supports three data bus widths: 1 bit (default), 4 bits, 8 bits
Supports High Speed Mode HS400
Supports Field Firmware Update
Supports Power Off Notification
RoHS compliant
