FLC-BTM020IQ2D Bluetooth Module 5.0 Module with Antenna (Nordic)

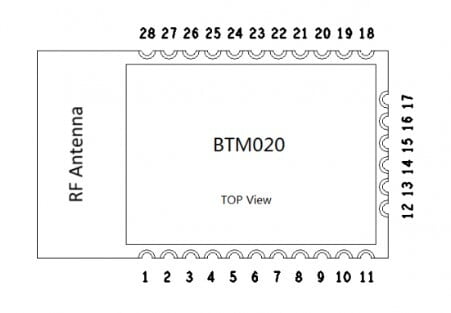

Name: FLC-BTM020IQ2D Bluetooth Module 5.0 Module with Antenna (Nordic)
Brand: Flaircomm
SKU: FLC-BTM020IQ2D Bluetooth Module
Price: 4.95 GBP
Availability: InStock

FLC-BM020IQ2D is a Bluetooth low energy (BLE) module supporting BT 5.0 (BLE only), with a microstrip antenna. This module makes it easy for users to add Bluetooth low energy to their products.

Users can easily establish wireless connections with the module. It supports Bluetooth low energy (Bluetooth 5), ANT and 2.4GHz proprietary protocol stacks. It also has a NFC-A tag interface for OOB pairing.

£4.95

Additional information

Expected delivery time

Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.

Volume Orders

Please contact us to discuss higher volume order requirements

Available Offer

Product Details

Features

BT 5.0 (BLE only), up to 2Mbps
-96dbm sensitivity, TX power -20 ~ 4dBm in 4dB steps
Include ATT, GATT, SMP, L2CAP, GAP
AES HW encryption with Easy DMA
ANT, 2.4GHz, NFC-A tag
Cortex M4F MCU with 64KB RAM, 512KB FLASH
20-channel programmable peripheral interconnect (PPI)
12 bits ADC
UART, SPI, I²C, QDEC, PDM
SWD Debug interface
BQB, CE, FCC
Size: 18.5mm x 9.5mm
Operating temperature: -40C to + 85C

Applications

Smart home: heating control and lighting control
Health sensors: blood pressure, thermometer and glucose meters
Sports and fitness sensors: heart rate, runner speed and cadence, cycle speed and cadence
HID: keyboards, mice, touchpads, remote controls
Beacons
