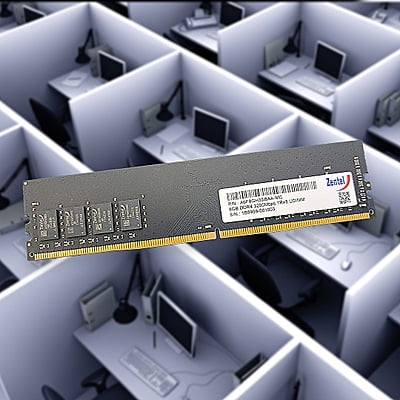

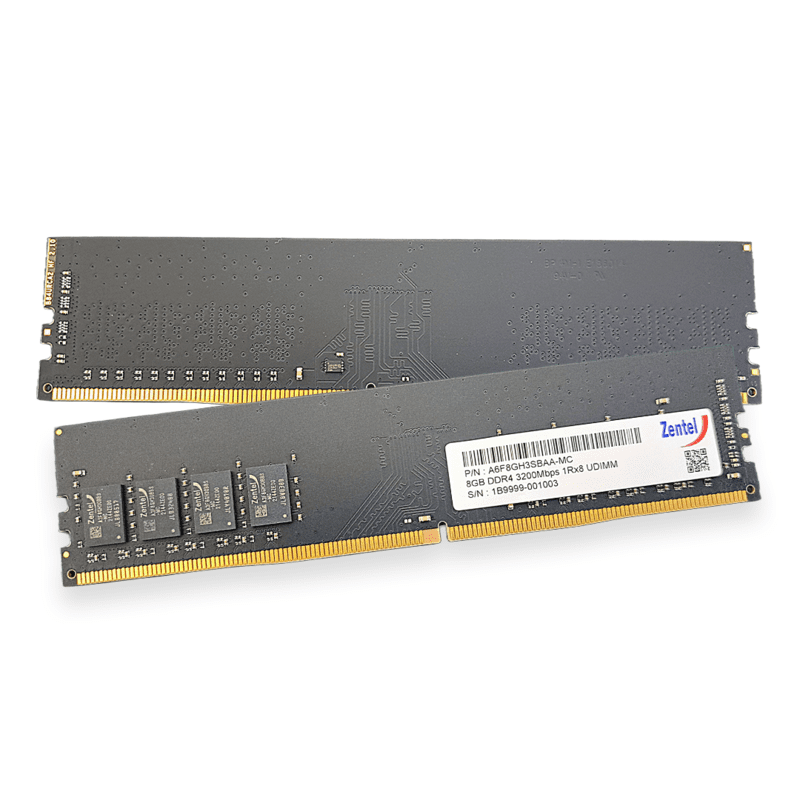

A6F8GH3SBAA-MC Zentel UDIMM 8GB, 1R x8 DDR4 Module
£25.23
A6F8GH3SBAA-MC
8GB, 1Rx8 288-Pin DDR4-3200 UDIMM
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/ds_a6f8gh3sbaamcf_01.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
8GB DDR4 SDRAM UDIMM Specifications
- Max. Speed; CAS Latency: DDR4-3200@CL=22
- Row Cycle Time (tRCmin): 45.75 ns
- Refresh to Active/Refresh Command Time (tRFCmin): 350 ns(min.)
- Row Active Time (tRASmin): 32 ns(min.)
- Operating Temperature: 0C to +85C
- Storage Temperature (TSTG): -55 to 100C
Features
- 288-pin, unbuffered dual in-line memory module (UDIMM)
- 1Rx8 memory module (1 rank of x8 DDR4 SDRAMs )
- Power supply:
- VDD = VDDQ = 1.2 V ± 5%
- VPP = 2.5 V –5%/+10%
- VDDSPD = 2.2 V to 3.6 V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- On-board I2C serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB Height: 1.23” (31.25 mm)
