CSR1012 QFN Bluetooth Smart IC - CSR1012A05-IQQP-R

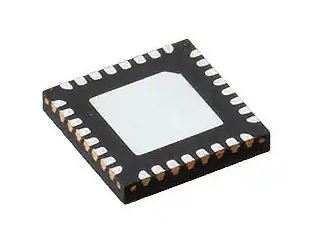

CSR1012 Integrated BT 4.0 Low Energy Single Mode IC QFN32 4mm x 4mm

CSR1012 QFN is a CSR μEnergy platform device. CSR μEnergy are CSR's single-mode Bluetooth low energy products for the Bluetooth Smart market. CSR1012 QFN is a small footprint variant of CSR1010QFN.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Choose Quantity
+ Add to Cart
Product Details
CSR μEnergy enables ultra low-power connectivity and basic data transfer for applications previously limited by the power consumption, size constraints and complexity of other wireless standards. CSR1012 QFN provides everything required to create a Bluetooth low energy product with RF, baseband, MCU, qualified Bluetoothv4.1 specification stack and customer application running on a single IC.


CSR is the industry leader for Bluetooth low energy, also known as Bluetooth Smart. Bluetooth Smart enables connectivity and data transfer to leading smartphone, tablet and personal computing devices including Apple iPhone, iPad, iPod and Mac products and leading Android devices. Bluetooth low energy takes less time to make a connection than conventional Bluetooth wireless technology and can consume approximately 1/20th of the power of Bluetooth Basic Rate. CSR1012 QFN supports profiles for health and fitness sensors, watches, keyboards, mice and remote controls.

Typical Bluetooth Smart applications:
  • HID: keyboards, mice, touchpads, remote controls
  • Sports and fitness sensors: heart rate, runner speed and cadence, cycle speed and cadence
  • Health sensors: blood pressure, thermometer and glucose meters
  • Mobile accessories: watches, proximity tags, alert tags and camera controls
  • Smart home: heating control and lighting control


  • Bluetooth® v4.1 specification compliant
  • Bluetooth Smart
  • 128KB memory: 64KB RAM and 64KB ROM
  • Support for Bluetooth v4.1 specification host stack including ATT, GATT, SMP, L2CAP, GAP
  • RSSI monitoring for proximity applications
  • <900nA current consumption in dormant mode
  • 32kHz and 16MHz crystal or system clock
  • Switch-mode power supply
  • Programmable general purpose PIO controller
  • 10-bit ADC
  • 12 digital PIOs
  • 3 analogue AIOs
  • UART
  • I²C / SPI for EEPROM / flash memory ICs and peripherals
  • Debug SPI
  • 4 PWM modules
  • Wake-up interrupt and watchdog timer
  • QFN 32-lead, 4 x 4 x 0.65mm, 0.4mm pitch
