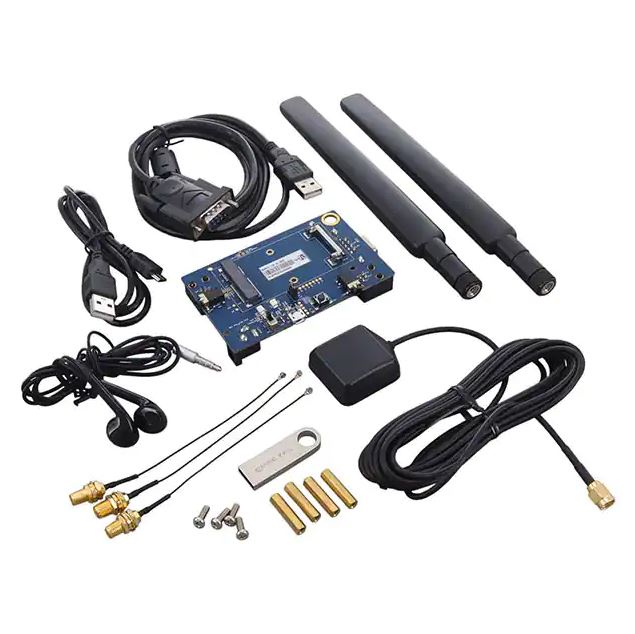

Quectel Mini PCIe Evaluation Board Kit

The Mini PCIe evaluation board is an assistant system integrator for developing and evaluating products based on Quectel Wireless Modules.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume order requirements
Choose Quantity
+ Add to Cart
Product Details
  • Power Supply:
    • DC supply 4.5~5.5V typically 5V
    • VBAT: 3.3V at J202
  • USIM Card Interface:
    • USIM/SIM card (6 pins) connector with push loading
    • USIM/SIM card: 3V and 1.8V
  • Audio Interface: Used for earphone and handset
  • UART Interface:
    • COM-serial interface for data communication (default 115200bps)
    • Max. baud rate: 460800bps
  • USB Interface: USB 2.0
  • Signal Indication: 2 LEDs are available for signal indication
  • Physical Characteristics: Size: 94 × 58mm
