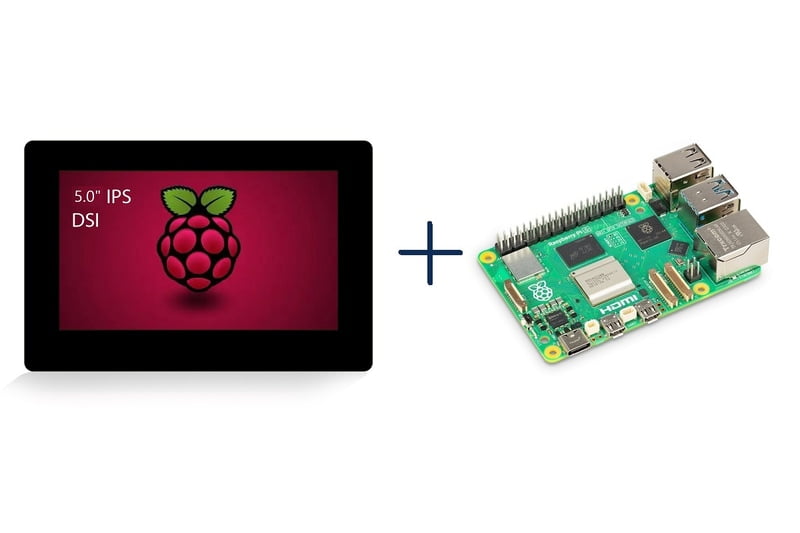

*Bundle* 5" DSI Touch Display Kit with Raspberry Pi 5 (4GB)
£76.00
New In! 5.0 inch DSI touch display bundled with a Raspberry Pi 5 (4GB)
Bring your interactive projects to life with our touch screen and Raspberry Pi 5 bundle. Applications include: home automation systems (control lights, thermostats, security cameras etc from a user-friendly interface), portable gaming consoles, control panels for appliances and machinery, interactive dashboards for IoT projects, car infotainment systems, digital signage, and much more.
Bundle includes:
- 1x Raspberry Pi 5 (4GB)
- 1x DSI touch display, 5.0"
- 1x 200mm display cable
Note: This bundle does not contain a power supply. If you need a power supply, you can add this separately here.
We also have bundles for the 8GB Raspberry Pi 5, and different display sizes - See other options >>
Expected delivery time
In stock. 2-4 working days Choose Quantity
Product Details
Raspberry Pi 5 (SC1111) key features
- 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU
- LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)
- 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- Micro SD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires PoE+ HAT)
- 2 × 4 lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals
- 5V/5A DC power (PD enabled)
- Raspberry Pi standard 40-pin header
- Real-Time Clock (RTC), powered from external battery
- On-board power button
5 inch DSI touch display specifications
Resolution | 800*480 |
Cover Lens | AGC Glass 1.1 |
Touch Driver IC | ST1633I |
Interface | DSI interface |
Luminance | 350nits |
Viewing angle | Full |
Overall size (mm) | 134.76*87.8*32.95 |
