Raspberry Pi DAC+
£16.00

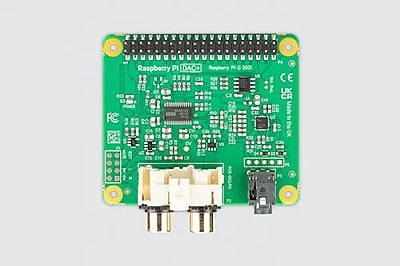

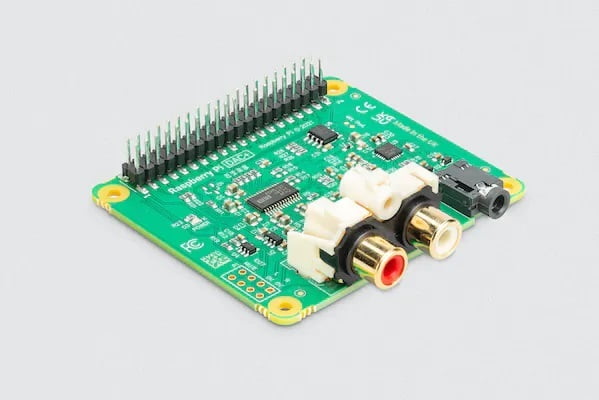

Raspberry Pi DAC+ is a high-performance audio HAT compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5122, it delivers stereo analogue audio to a pair of phono (RCA) connectors. It does not require external power, and connects directly to Raspberry Pi’s GPIO header with no need for soldering or cables.
Previously known as IQaudio DAC+.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/dac-plus-hat-product-brief.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
Raspberry Pi DAC+ Specifications
The Raspberry Pi DAC+ is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
- Form factor: 58 mm × 65 mm
- Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5122 digital audio codec (DAC)
- Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
- Features:
- Power LED
- Analogue audio out (0-2V RMS) via panel-mounted stereo phono (RCA) sockets with MUTE signal (headphone detect)
- Dedicated headphone amplifier, output via 3.5mm panel-mounted barrel socket
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
- Operating temperature: 0°C–50°C
Check out the Raspberry Pi audio boards documentation for help selecting and using Raspberry Pi audio boards.
