Thundercomm - TurboX C865 System on Module
£389.00

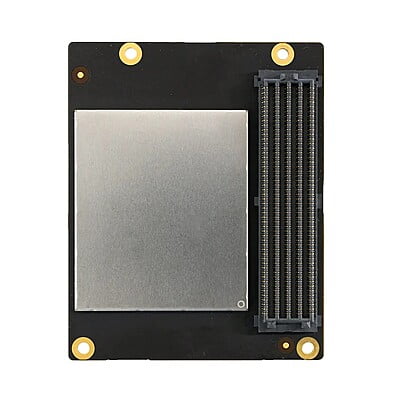

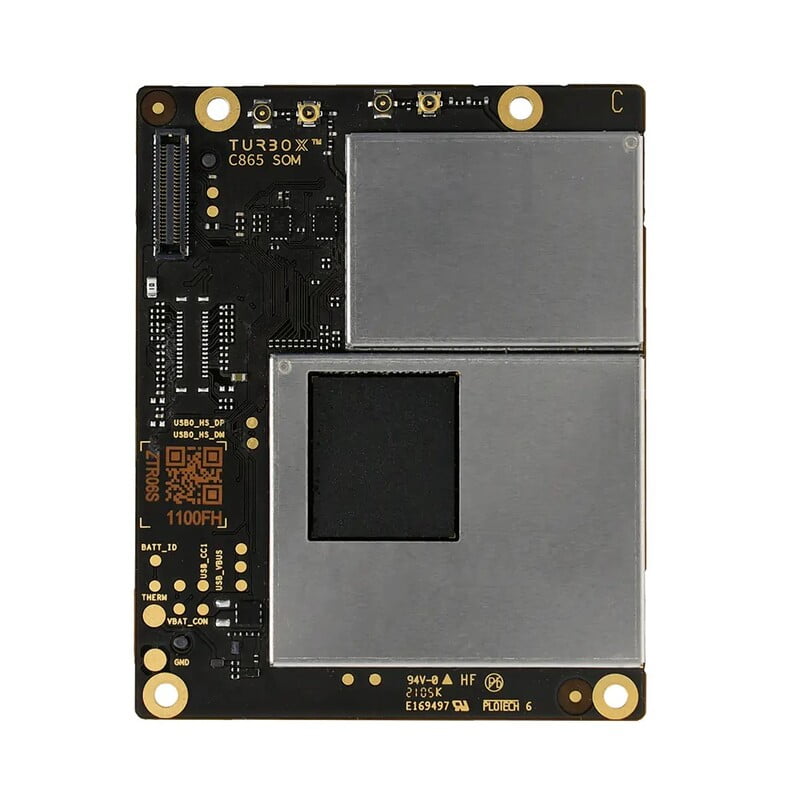

Thundercomm TurboX™ C865 SOM is a highly integrated System on Module (SoM) which is powered by premium-tier Qualcomm Snapdragon™ QCS8250 processor.
TurboX™ C865 supports Android, featuring in advanced AI increases, optimized 5G system, huge camera and video advancements and evolved graphics. It is an ideal platform for IoT products requiring high computing power, 5G connection, advanced camera capability, and superior graphics performance.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume requirements Choose Quantity
Product Details
Applications
- Service Robot
- Industrial Robot/Control
- Automated Guided Vehicle
- Self-driving Vehicle for logistics
- Consumption/Entertainment Robot
- Industrial Drone
Features
- 5th generation Qualcomm AI Engine is 2x more powerful than its predecessor
- 15 TOPS AI performance while using lower power
- All-new Qualcomm Hexagon Tensor Accelerator
- New CV-ISP operates at 2 Giga-pixels per second
- No limit HD slow-motion video capture at 960 FPS
- First Dolby Vision for video capture on mobile
- Kryo CPU provides 25% faster performance
- True 10-bit HDR gaming and first-ever updatable GPU drivers on mobile
Specifications
- Platform:
- Snapdragon™ QCS8250
- Qualcomm® Kryo™ 585
- Qualcomm® Adreno™ 650 GPU, Adreno 665 VPU, Adreno 995 DPU
- Qualcomm® Hexagon™ DSP with quad HVX
- Qualcomm® Spectra™ 480 image processing
- Memory: 8GB + 128GB
- Connectivity: WiFi: QCA6391 (802.11 a/b/g/n/ac/ax, 2x2Mino)
- Encode: 8K@30fps (H.264/H.265/VP8)
- Decode: 8K@60fps (H.264/H.265/ VP8/VP9)
- Display Interfaces: 2x MIPI-DSI 4-lane；Support 5040*2160@60fps
- Camera Interfaces: 6x MIPI-CSI, 4-lane,(2.5 Gbps per lane) supports CMOS and CCD sensors up to 64 MP sensors
- Other Interfaces: 1x Sound Wire, 2x RF connector for WiFi, 2x USB 3.1, 2x SSC I/F for sensor, 2x PCIE, 1x UART, 1x SDC for micro-SD, 6x DMICs, 2x Speakers, GPIOs
- Operating Environment:
- Operation Temperature: -25℃ ~ +75℃
- Operation Humidity: 5% ~ 95%, non-condensing
- Voltage: 3.8V ~ 4.2V
- Dimension: 45 x 56 x 9mm B2B Connector
- OS Support: Android 10
