Thundercomm - TurboX™ C6490 Development Kit
£1,293.38
5G Smart Module Development Kit for C6490 (QCS6490 / QCM6490)
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
The Turbox™ C6490 development kit for the Thundercomm TurboX C6490 SOM supports multiple 5G sub-6GHz bands and is backward compatible with 4G/LTE networks. It supports Android 11 and Android 12. The TurboX C6490 SOM is based on the Qualcomm Snapdragon 5G SoC QCM6490 and supports video 4K60 fps decoding / 4K30 fps encoding, five 4-lane MIPI-DSI and a variety of peripheral interfaces GPIO/UART/I2C/I3C/SPI/USB 3.1.
The C6490 SOM has a very long life cycle as a 5G smart module and targets various markets such as handheld terminals, dash cameras, smart POS, drones, etc. Its extensive hardware interfaces and software SDK can help customers validate functions and prototype quickly.

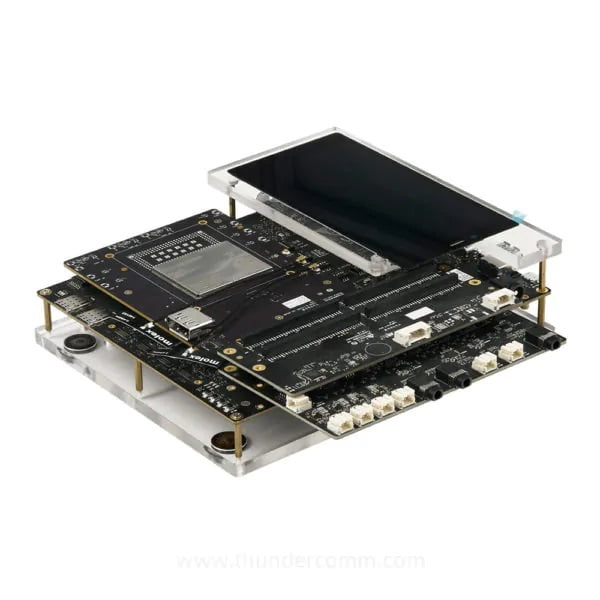

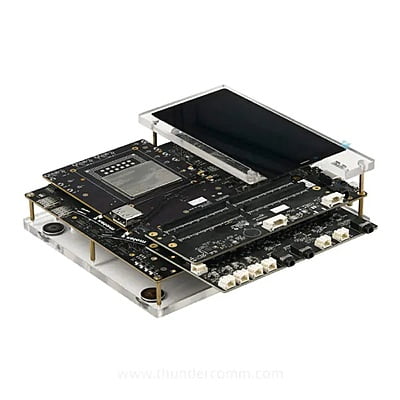

TurboX C6490 Development Kit Main Components

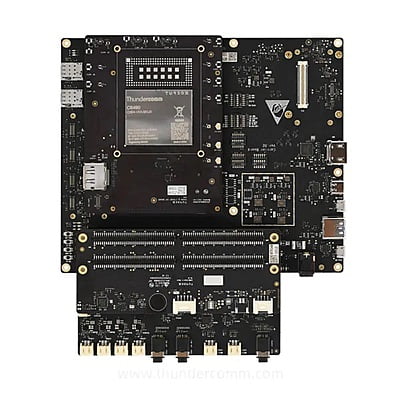

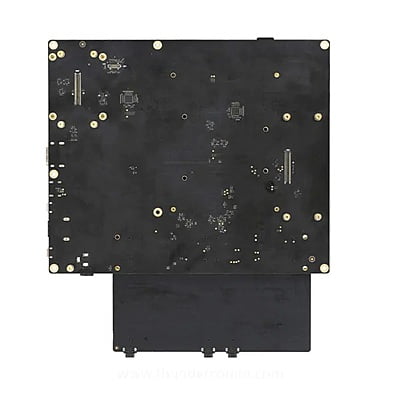

- Main IO board: functioning together with various SOMs, the board supports multiple interfaces to connect LCD panels, camera modules, SD cards, SIM cards, and USB devices, as well as on-board UART debug port, buttons, LED, etc.
- Interposer board: functioning together with C6490 SOM, the board can support multiple RF antenna ports.
- Audio board: dedicated board for Audio features.
- Sensor board: the board features A+G sensor, M sensor, barometer sensor, ALS+PRO sensor, NFC (Near Field Communication) sensor. Many other interfaces are reserved for future versions.
- Camera with FPC (IMX577).
- Wi-Fi/BT 5.2
- Power adaptor.
- Dev. Kit Holder.
TurboX C6490 Development Kit Applications
- Rugged Handheld
- Rugged Tablet
- Digital Signage
- Service Robot
- Industrial Robot
