Wide Eye ToF Dev Kit - High Res ToF 3D Depth Camera

Wide Eye ToF Dev Kit - High Res ToF 3D Depth Camera

  • The Wide Eye Time of Flight (ToF) Dev Kit module delivers raw 3D depth data at high speed and in real time.

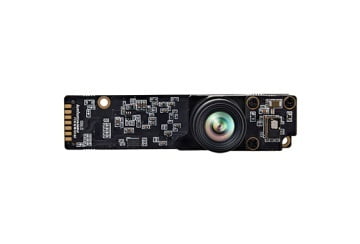

  • The Wide Eye ToF Module l is a 3D ToF development kit with VCSEL IR illumination. The Dev Kit is a compact size module with ASIC companion chip (raw data conversion) and is equipped with a MIPI and USB 3.0 interface.
  • Thanks to its compact board design, it is designed for easy system integration.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.
Volume Orders
Please contact us to discuss higher volume requirements
Choose Quantity
+ Add to Cart
Product Details
Key features
  • 3D ToF depth camera
  • True VGA resolution
  • Field of View (FOV): 90° (H) x 68° (V)
  • High precision
  • Frame Rate: 30fps
  • Very good recognition in different lighting conditions
  • Integrated ASIC/companion chip for calculating the
  • Raw data in x, y, z and intensity values
  • Compact design (60mm x 15mm x 10mm)
  • 0.2-4.0m detection range
  • Interfaces: USB 3.0 connector board + MIPI
  • Operating system: Windows, Linux (Android on request)
  • Includes powerful software package (SDK)
  • "Robotics Operating System" available (ROS Driver)
